operations · dashboard

Operate your queue, not just watch it.

bunqueue dashboard is a free, MIT-licensed operator console for a bunqueue server. It covers live health, jobs, dead letters, cron, workers, workflows and the server process itself, and it disables any action the server cannot perform safely.

7:46

Video Full tour, 7:46: queues, jobs, flows, workflows and server control on a live server. Watch on YouTube ↗

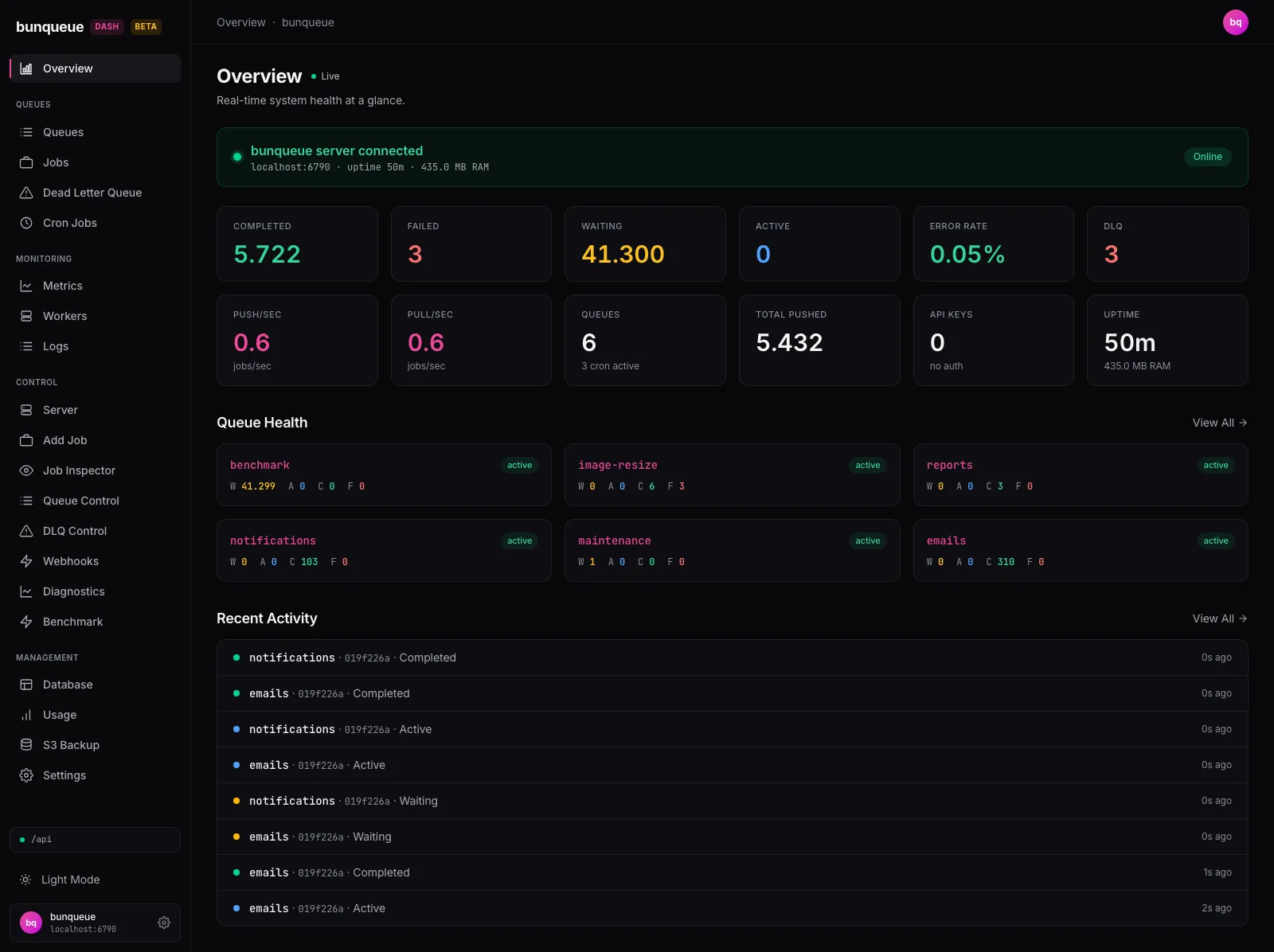

The Overview page: connection status, headline counters, per-queue health and the live activity feed. Captured against a seeded server.

Beta

The dashboard lives in its own repository, egeominotti/bunqueue-dashboard, and is released separately from bunqueue. Interfaces and behavior can change between releases. Review it before you rely on it for unattended production use.

Quick start

The npm package requires exactly Bun 1.4.2 and refuses to start on other versions. On any other Bun version, or without Bun, use a standalone binary. One command serves the prebuilt dashboard and its control agent:

bunx bunqueue-dashboard

Open http://127.0.0.1:8080. The process:

• serves the dashboard on 127.0.0.1:8080,
• proxies /api/* to your server’s HTTP API at BUNQUEUE_URL (default http://localhost:6790),
• runs the control agent on 127.0.0.1:6800.

No server yet? Start one from Control ▸ Server, or run bunx bunqueue start in another terminal (see Running the Server). To connect to a server that runs elsewhere, set its HTTP address and turn off local process control:

BUNQUEUE_URL=http://queue.internal:6790 BUNQUEUE_MANAGED=0 bunx bunqueue-dashboard

With BUNQUEUE_MANAGED=0 the dashboard reports health from BUNQUEUE_URL and never spawns, stops, restarts or reconfigures a process. Use it for any server that systemd, Docker or Kubernetes supervises. Pages that use the HTTP API work against a remote server. Operations that run through the control agent (Queue SDK controls, Job Flows, the Workflow Engine, the Database inspector and S3 backups) need a server on the same host that matches the agent’s server configuration (HTTP port and data path).

To keep the command installed instead of fetching it each time:

bun add -g bunqueue-dashboard
bunqueue-dashboard

Want to look first? The live demo runs in your browser with sample data and needs no server.

What you can do

Area	Pages	Capabilities
Overview	Overview, Fleet	Server health, throughput, per-queue status and recent activity. Fleet probes several brokers at once and groups those that share a PostgreSQL target.
Jobs	Queues, Jobs, Job Inspector, Add Job, Bulk Add	Server-paginated browsing by state; payload, result and timeline for any job; single, JSON and NDJSON enqueue; promote, re-prioritize and delay.
Failures	Dead Letter Queue, DLQ Control	Failure reasons, attempt history and CSV export across queues.
Scheduling	Cron Jobs	List schedules, create cron or interval schedules, and delete them.
Queue policy	Queue Control	Pause and resume, rate limits, concurrency, stall detection, deduplication and queue metrics.
Workflows	Workflow Engine, Job Flows	Start, signal, inspect, compensate and archive workflow executions; explore flow DAGs and create flows.
Observability	Metrics, Workers, Logs, Alerts, Diagnostics	Throughput, queue depth and latency percentiles, worker liveness, the live event stream, browser-local alert thresholds and connectivity checks.
Server	Server	Start, stop and restart the server process, edit its ports, data path and environment, and follow its logs.
Data	Database, S3 Backup	Read-only SQLite inspector with a query runner. Configure, list, create and restore S3 snapshots with guarded restore.
Integrations	Webhooks, MCP, Copilot	Register and toggle webhooks, connect the MCP server, and use the experimental AI Copilot.

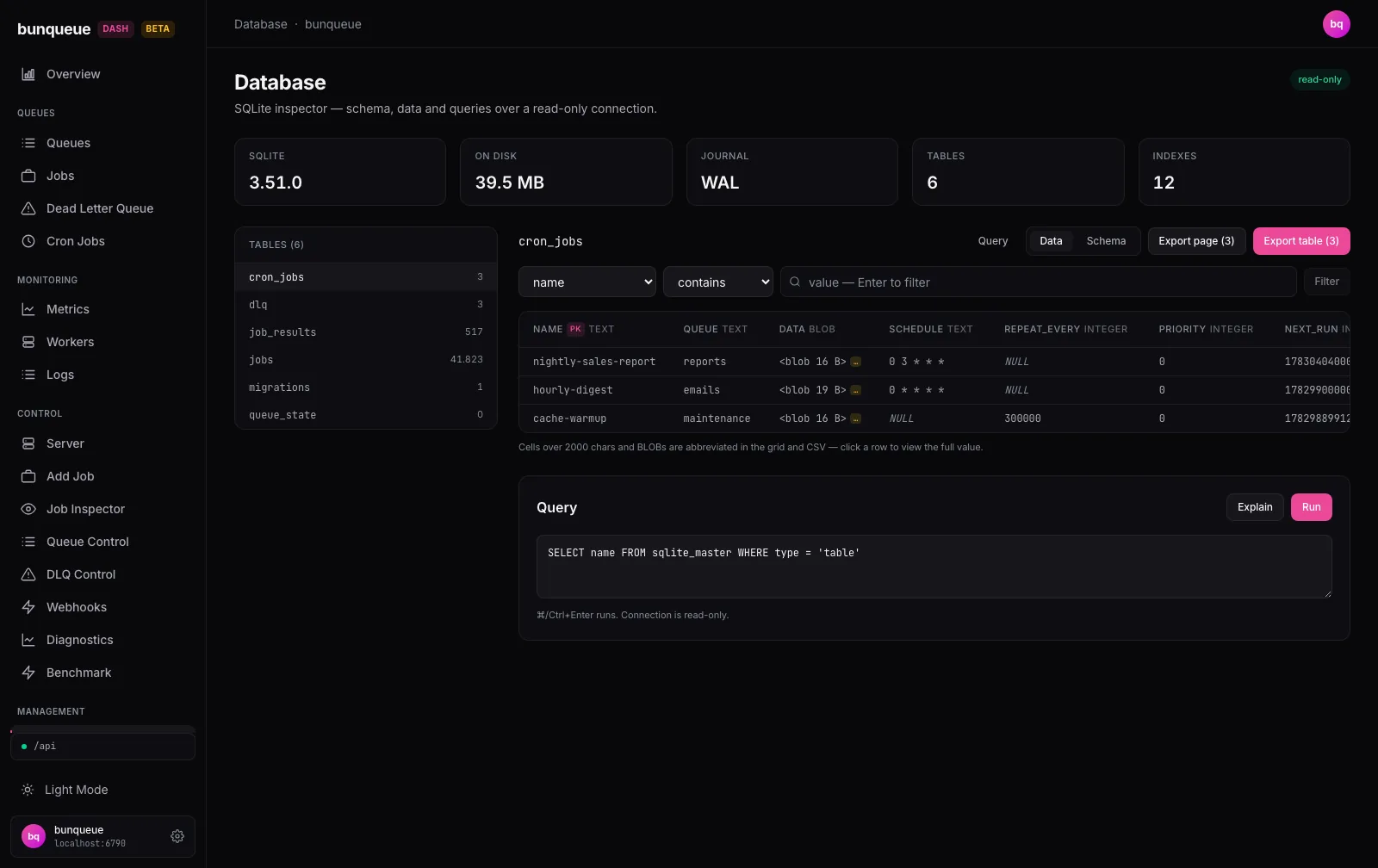

The Database page opens the SQLite file over a read-only connection.

How it connects

Your browser Dashboard UI React app that polls the HTTP API and follows its SSE stream

Optional Copilot calls your AI provider directly

HTTP :8080 same origin

bunqueue-dashboard Dashboard process npm package or standalone binary

UI server :8080 Serves the UI, proxies /api/* and bridges /agent/* to the agent

Control agent 127.0.0.1:6800 Server process, SDK bridges, SQLite inspector, S3 backups

• HTTP :6790 /api/* proxy
• TCP :6789 SDK bridges

Self-hosted bunqueue server SQLite or PostgreSQL

HTTP API :6790 Reads, writes and the SSE stream

TCP :6789 Client SDKs and workers

• Reads use polling and a Server-Sent Events stream from the public HTTP API.
• Writes go through the same HTTP API. The dashboard checks each mutation’s request and response shape against the live server.
• Managed operations run through the local control agent: process lifecycle, Queue SDK controls, FlowProducer, the Workflow Engine, SQLite inspection and backups. The agent uses the published bunqueue npm client and never patches bunqueue internals. Its SDK bridges support native TLS with a private CA.
• Several brokers take one named profile and one paired agent each. Settings holds up to 32 profiles, and the Fleet page probes them all without switching the active one.

Actions that fail closed

The dashboard exposes an operation only when it can perform it safely through bunqueue’s public HTTP API or client SDK. Some operations have no atomic precondition on a job’s identity or dependencies. The dashboard disables those rather than risk acting on a different job.

Operation	Behavior	Reason
DLQ retry and removal	Unavailable	A job can be recreated under the same custom ID between the read and the write.
Requeue a completed job	Unavailable	A requeue does not rebuild the job’s flow dependencies or ordering.
Cancel, Discard, Drain, Clean, Obliterate, DLQ purge	Unavailable	Each can delete a job that another queue still depends on.
DLQ maxAge and maxEntries	Read-only	Lowering either can delete entries immediately. Auto-retry can be turned off, not on.
Create a cron schedule	Confirmed upsert	The form refuses a name that already exists and checks again just before sending. The server call is an upsert, so two clients creating the same new name at once can overwrite each other; the confirmation asks you to accept that.
Copilot actions	Promote, Pause, Resume only	You confirm each proposal before it runs.

When you have confirmed the target yourself, run those operations from the CLI, the Queue API or the DLQ API. The dashboard’s known issues page records every constraint with its source file.

Deployment options

Method	How	Includes the control agent
npm, on demand	bunx bunqueue-dashboard	Yes
npm, installed	bun add -g bunqueue-dashboard, then bunqueue-dashboard under your process supervisor	Yes
Standalone binary	Download from GitHub releases: Linux x64/arm64, macOS x64/arm64, Windows x64. No Bun needed on the host.	Yes
Container	ghcr.io/egeominotti/bunqueue-dashboard: latest and vX.Y.Z on releases, edge on main. Caddy serves the static UI.	No
Static host	bun run build in the dashboard repository, then serve dist/ from any CDN	No

The npm package and the binaries share one set of runtime variables, and both run the token boundary described below. The container image and static builds serve only the UI. The browser then calls bunqueue directly, so:

• set CORS_ALLOW_ORIGIN on the bunqueue server to the dashboard’s origin,
• protect the server with AUTH_TOKENS or authentication at your proxy,
• set the server URL in Settings, or at build time with VITE_BUNQUEUE_URL.

Kubernetes, PM2, Fly.io, Render, Cloud Run and other targets are covered in the dashboard’s deployment guide.

Configuration

The npm package and the standalone binaries read these variables:

Variable	Default	Purpose
PORT	8080	Dashboard HTTP port.
BIND_ADDR	127.0.0.1	Dashboard bind address.
BUNQUEUE_URL	http://localhost:6790	bunqueue HTTP API that /api/* is proxied to.
BUNQUEUE_MANAGED	1	1 enables local start, stop and restart. 0 attaches to an externally supervised server.
BASE_PATH	/	Mount prefix behind a reverse proxy, for example /internal/queue.
AGENT_PORT	6800	Control agent port.
AGENT_TOKEN	none	Bearer token required on every bridged agent route for LAN or proxy access.
BUNQUEUE_TOKEN	none	Bearer token required on every /api/* route for LAN or proxy access.
AGENT_ALLOWED_HOSTS	loopback names	Extra Host names or IPs that the dashboard and agent accept.
AGENT_ALLOWED_ORIGINS	development defaults	Extra browser origins allowed to call the agent.
TRUST_PROXY	off	1 trusts an X-Forwarded-Host that your proxy overwrites.

VITE_* variables are build-time values for the static build and seed the first profile in Settings. Vite compiles them into the public bundle as plain text, so never put a token in one. Enter tokens in Settings or at the sign-in prompt; they are kept in memory only, so reloading the page clears them.

Security model

The control agent can spawn and stop processes, so its defaults are restrictive:

• It binds to 127.0.0.1 only.
• CORS is limited to an allowlist and is never *.
• A request with a disallowed Origin gets 403 before it reaches the process manager, which blocks cross-site requests from another tab.
• A Host allowlist blocks DNS rebinding and rejects unknown names.
• Without BUNQUEUE_TOKEN, an /api/* request that the dashboard identifies as LAN or proxied gets 403 before anything reaches bunqueue. Requests that look local need no token unless AGENT_ALLOWED_HOSTS lists a non-loopback name or TRUST_PROXY=1 is set; see steps 2 and 4.
• Responses deny framing, MIME sniffing and referrer leakage.

To give a team access over the network:

1. Set both tokens. Use one of the server’s AUTH_TOKENS as BUNQUEUE_TOKEN, so the token the dashboard forwards is also valid upstream.
2. Allowlist the names you serve. Put each hostname or IP in AGENT_ALLOWED_HOSTS, or its full origin in AGENT_ALLOWED_ORIGINS.
3. Put user authentication in front. Host and Origin checks are not user authentication. Use your SSO or identity-aware proxy, and terminate TLS there.
4. Keep proxied requests identifiable. Once AGENT_ALLOWED_HOSTS lists a non-loopback name, the dashboard requires tokens on every /api and /agent request. Forward the original Host header (for nginx, proxy_set_header Host $host;) so requests match that name. If your proxy must rewrite Host, allowlist the rewritten name too, and set TRUST_PROXY=1 only when the proxy overwrites X-Forwarded-Host.

# Runs behind an authenticating reverse proxy on the same host, which
# terminates TLS. Read both tokens from your secret manager.
AGENT_ALLOWED_HOSTS=queue-console.example.com \
AGENT_TOKEN="$DASHBOARD_AGENT_TOKEN" \
BUNQUEUE_TOKEN="$BUNQUEUE_AUTH_TOKEN" \
BUNQUEUE_URL=https://bunqueue.internal:6790 \
BUNQUEUE_MANAGED=0 \
bunx bunqueue-dashboard

The dashboard keeps its default 127.0.0.1 binding, so only the proxy can reach it, and browser traffic is encrypted up to the proxy. Two hops still carry tokens:

• Dashboard to bunqueue. The /api proxy forwards the server token to BUNQUEUE_URL, and the agent’s health check sends it too. When the server runs on another host, enable native TLS and use an https:// URL with a certificate the dashboard host trusts, or keep that hop on a trusted private network.
• Proxy to dashboard. Port 8080 serves plain HTTP. If the proxy runs on another host, set BIND_ADDR=0.0.0.0, restrict port 8080 to the proxy with a firewall or network policy, and keep that link on a trusted network.

Keep the agent’s own port, 6800, on loopback. Remote clients reach it only through the dashboard’s authenticated /agent bridge.

Alerting

Dashboard alerts are thresholds stored in your browser and are evaluated only while a tab is open. To page on-call, use the Prometheus endpoint and Alertmanager rules.

AI Copilot (experimental)

The Copilot answers questions about live queue state and can propose Promote, Pause and Resume, which you confirm. It stays off until you add a model. Choose Claude, ChatGPT, Gemini, GLM, OpenRouter or any OpenAI-compatible endpoint, including a local Ollama or LM Studio, and paste your own key. The key stays in memory for the session and is never written to disk.

Requests go from your browser straight to the provider you choose, together with the queue state the Copilot reads. Some providers, including OpenAI, block direct browser requests, and support for others depends on their browser (CORS) policy. Use an endpoint that accepts browser requests, such as your own proxy. Check your data-handling policy before you use it with personal or regulated job data. A local endpoint such as Ollama keeps that data on your network.

Testing and compatibility

Each dashboard release pins the bunqueue client its control agent uses, and its CI runs disposable real servers of that version (bunqueue 2.9.4 for the current release). Check the dashboard’s release notes before upgrading either side. Those runs cover SQLite schema upgrades, TLS, and three authenticated brokers sharing PostgreSQL. A Playwright suite drives every sidebar route on Chromium, Firefox and WebKit, including recovery of the live event stream across a server restart and automated WCAG A/AA checks. The verification matrix lists each command and what it proves. The live demo uses sample data and is not test evidence.

Resources

• Live demo: every page with sample data
• Dashboard documentation: an illustrated user guide for each page, architecture and API mapping
• Source on GitHub: MIT license, issues and releases
• npm package
• In this site: Monitoring, Running the Server, Native TLS, Environment Variables
